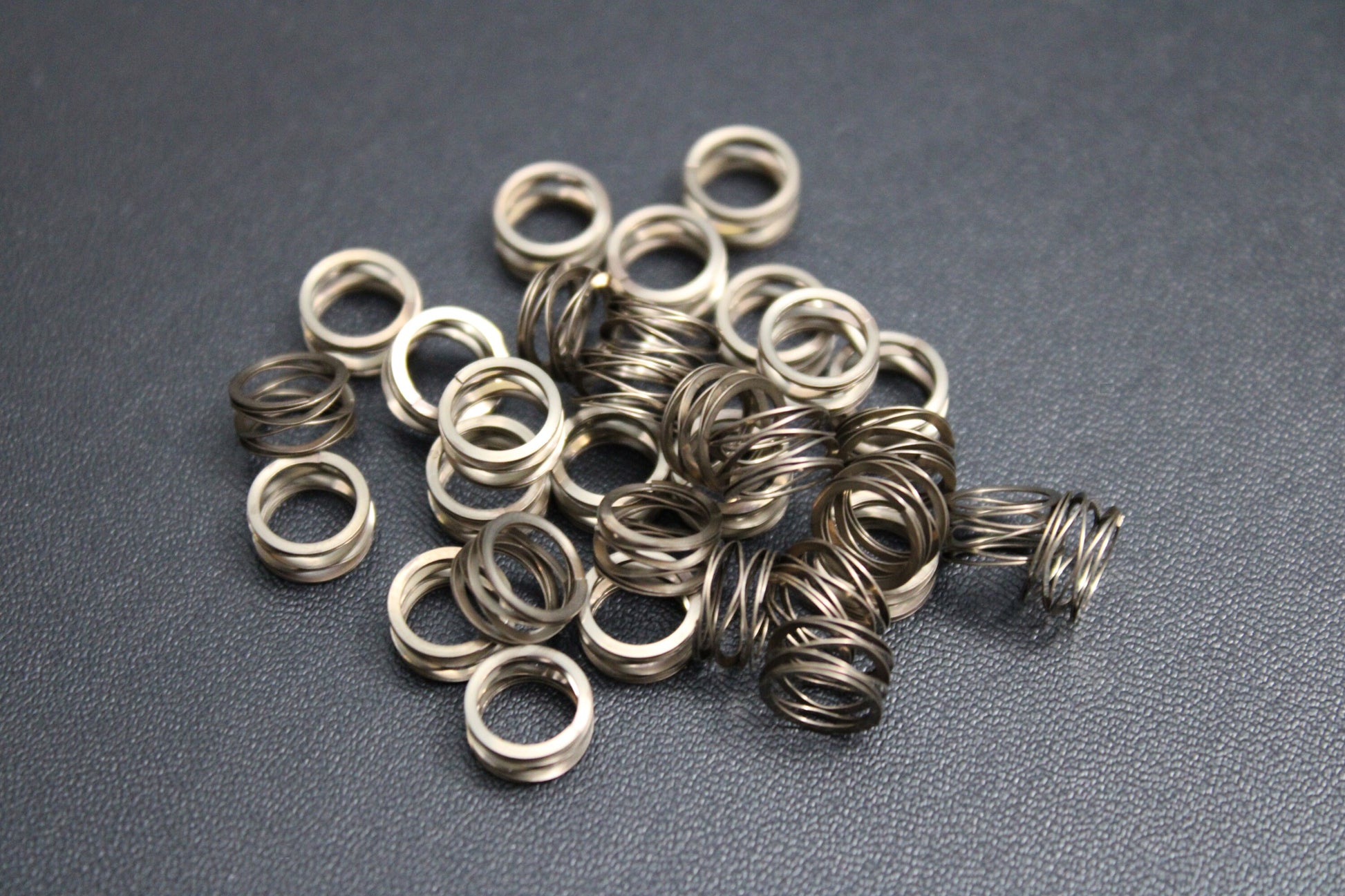

Stacked Wave Disc Springs for Nintendo GameCube Controller Sticks

Custom ordered wave disc springs to serve as an upgraded replacement in T3 gamecube controller stickboxes that decreases compression from the OEM feel and in-turn increases longevity of moving parts in contact with each other.

All types have the following properties:

• Hole Diameter: 3/8"
• Shaft Diameter: 1/4"
• Working Load: 4lbs

Smalley L1:

• Free Height: 0.15"/3.80mm
• Washer Shims: REQUIRED

Smalley L2:

• Free Height: 0.20"/5.00mm
• Washer Shims: NOT required

TingFeng L2:

• Free Height: 0.18"/4.30mm
• Washer shims NOT required

Note: For those familiar with the wave disc springs fires links to in his slickbox guide, they are the Smalley L1. As noted in his guide, they will require washer shims otherwise the stickbox will not have enough compression to operate correctly. Smalley L2 and TingFeng L2 are taller variations which alleviates the need for spacer washers (although feel free to use them still for increased tightness).
